Fuel line diagram help twin line

Question

2004-2009 Mazda 3

First generation, based on the Ford C1 global platform.

crwdns2934065:0crwdne2934065:0: 1

crwdns2933897:0crwdne2933897:0

Has anyone got a fuel line diagram for the twin line fuel pump tia

crwdns2934109:0crwdne2934109:0

crwdns2889612:0crwdne2889612:0 0

crwdns2944067:02crwdne2944067:0

Thank you I need the 2x outlet fuel pump

crwdns2934271:0masiku 5 agoMaw 21, 2025crwdnd2934271:0 Tricktrick crwdne2934271:0

What is the year and engine model of the vehicle?

crwdns2934271:0masiku 5 agoMaw 21, 2025crwdnd2934271:0 jayeff crwdne2934271:0

score 1 · Answer 1 · 2025-07-21T03:28:11-07:00

crwdns2934057:0crwdne2934057:0

crwdns2934065:0crwdne2934065:0: 507,8crwdns2936485:0crwdne2936485:0

11

393

1,5crwdns2936485:0crwdne2936485:0

crwdns2933897:0crwdne2933897:0

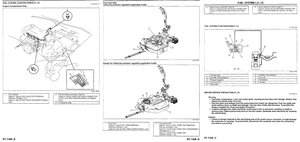

Here's some images from the 2007 Mazda 3 service manual that hopefully may be of some help

LF,L3 engine

(click on image)

L3 with TC engine

(click on image)
