Button issue, damaged PCB
The flexible PCB that makes the buttons work are damaged. Can any one share the circuit diagram of the PCB strip?
crwdns2934109:0crwdne2934109:0
crwdns2889612:0crwdne2889612:0
1
866520
crwdns2933313:01crwdne2933313:0
crwdns2934057:0crwdne2934057:0
crwdns2934065:0crwdne2934065:0: 815.1crwdns2936485:0crwdne2936485:0
1.2crwdns2936485:0crwdne2936485:0
921
2.4crwdns2936485:0crwdne2936485:0
@manasmitra great! Let's see what we can find out about a schematic. There is not much of a service manual available but here is what I have Kodak EasyShare M530 SM Now, you can always consider repairing it with something like this ;-)
Update 10/27/2024
@manasmitra took me a while but I was finally able to get this done :-) Hopefully you get your camera buttons back to work now.
crwdns2934105:0crwdne2934105:0
crwdns2889612:0crwdne2889612:0
1
Thank you for the service manual, though it doesn't have any schematic. The ebay link is working but they won't be able to send it to my country.
@manasmitra what country is it? Lt's see if we can get more info on these parts and hope to figure out how the get the schematic off it.
@oldturkey03 apology fo the late reply. I am from Calcutta, India. The seller from ebay can't send products to India.
crwdns2944067:02crwdne2944067:0
@manasmitra what button and what strip? Post some pictures with your question so we can see what you are looking at
Adding images to an existing question
crwdns2934271:0crwdnd2934271:0 oldturkey03 crwdne2934271:0

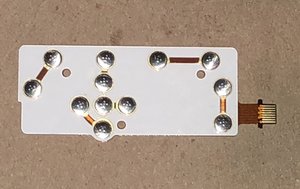

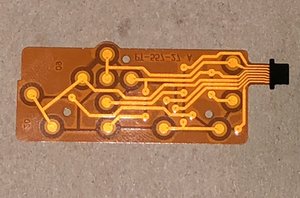

@oldturkey03 added the current condition of the PCB to my original post. If I can arrange the diagram, I can draw them on the damaged PCB with conductive ink.
crwdns2934271:0crwdnd2934271:0 Manas Mitra crwdne2934271:0
