| + | [title] Detaching PCB stack |
|---|---|
| + | [* black] There are a total of four PCBs neatly stacked up to fit in the small AXX 200 chamber. It minimizes space. Saved space = bigger audio chamber = better audio. |

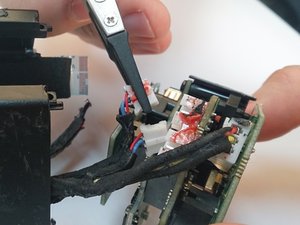

| + | [* red] To take out the stack of PCBs, first, disconnect the flex connector with tweezers. |
| + | [* red] After that, disconnect the two connectors. These are probably connected to the microphones at the top. |
| + | [* red] Lastly, disconnect the final connector that is linked to the battery from the bottom PCB. |
