Protocol Dronium III AP Trim Rocker Switch Replacement

crwdns2915892:0crwdne2915892:0

This guide provides the steps needed to open and access the components within the remote control, specifically the Trim Rocker Switch.

crwdns2942213:0crwdne2942213:0

  1. Protocol Dronium III AP Trim Rocker Switch Replacement, Trim Rocker Switch: crwdns2935265:01crwdnd2935265:01crwdnd2935265:03crwdne2935265:0 Protocol Dronium III AP Trim Rocker Switch Replacement, Trim Rocker Switch: crwdns2935265:01crwdnd2935265:02crwdnd2935265:03crwdne2935265:0 Protocol Dronium III AP Trim Rocker Switch Replacement, Trim Rocker Switch: crwdns2935265:01crwdnd2935265:03crwdnd2935265:03crwdne2935265:0

    • Remove the four (4) 8.5mm screws from the body of the remote using a JIS #1 screwdriver.

    • Remove the two (2) 4mm screws from the handle using a JIS #1 screwdriver.

    • Open remote body lifting back a full 180 degrees from face.

    crwdns2913378:0crwdne2913378:0

  3. Protocol Dronium III AP Trim Rocker Switch Replacement: crwdns2935265:02crwdnd2935265:01crwdnd2935265:03crwdne2935265:0 Protocol Dronium III AP Trim Rocker Switch Replacement: crwdns2935265:02crwdnd2935265:02crwdnd2935265:03crwdne2935265:0 Protocol Dronium III AP Trim Rocker Switch Replacement: crwdns2935265:02crwdnd2935265:03crwdnd2935265:03crwdne2935265:0

    • Remove the four (4) 6mm screws attaching the motherboard to body of the controller using a JIS #1 screwdriver

    • Gently lift the motherboard backwards.

    crwdns2913378:0crwdne2913378:0

  4. Protocol Dronium III AP Trim Rocker Switch Replacement: crwdns2935265:03crwdnd2935265:01crwdnd2935265:03crwdne2935265:0 Protocol Dronium III AP Trim Rocker Switch Replacement: crwdns2935265:03crwdnd2935265:02crwdnd2935265:03crwdne2935265:0 Protocol Dronium III AP Trim Rocker Switch Replacement: crwdns2935265:03crwdnd2935265:03crwdnd2935265:03crwdne2935265:0

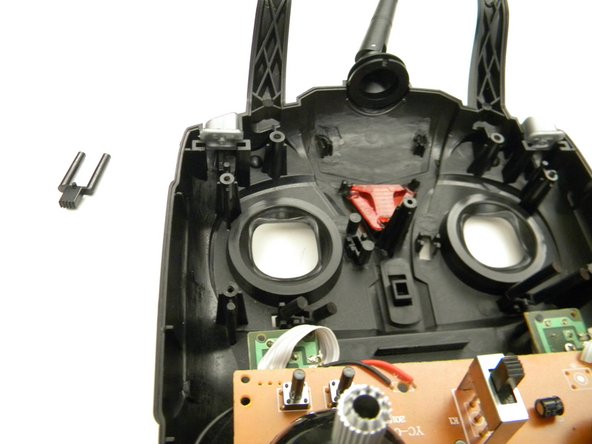

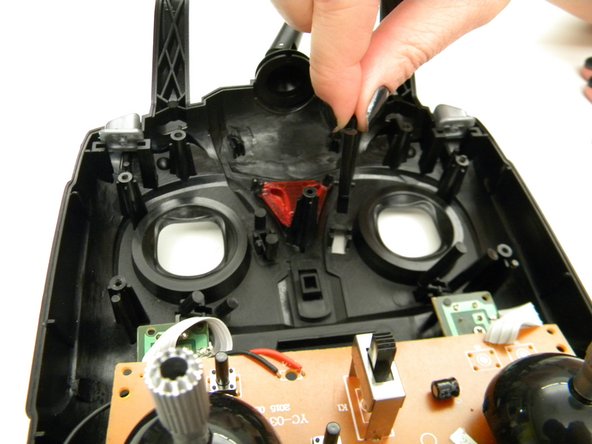

    • Remove the trim rocker switch from the controller.

    crwdns2913378:0crwdne2913378:0
crwdns2915888:0crwdne2915888:0

To reassemble your device, follow these instructions in reverse order.
