Plantronics CS50 Headset Motherboard of the Base Unit Replacement

crwdns2915892:0crwdne2915892:0

Use this guide to replace your base unit's motherboard.

crwdns2942213:0crwdne2942213:0

  1. Plantronics CS50 Headset Motherboard of the Base Unit Replacement, Motherboard of the Base Unit: crwdns2935265:01crwdnd2935265:01crwdnd2935265:02crwdne2935265:0 Plantronics CS50 Headset Motherboard of the Base Unit Replacement, Motherboard of the Base Unit: crwdns2935265:01crwdnd2935265:02crwdnd2935265:02crwdne2935265:0

    • Flip over the base unit to reveal the bottom.

    crwdns2913378:0crwdne2913378:0

  2. Plantronics CS50 Headset Motherboard of the Base Unit Replacement: crwdns2935265:02crwdnd2935265:01crwdnd2935265:02crwdne2935265:0 Plantronics CS50 Headset Motherboard of the Base Unit Replacement: crwdns2935265:02crwdnd2935265:02crwdnd2935265:02crwdne2935265:0

    • Using a #0 screwdriver, remove the two 2.50mm screws.

    crwdns2913378:0crwdne2913378:0

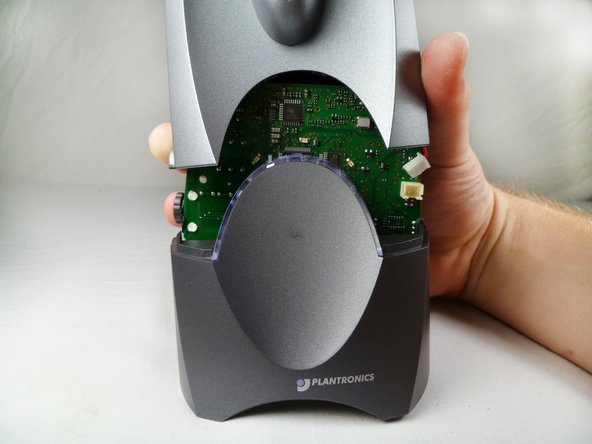

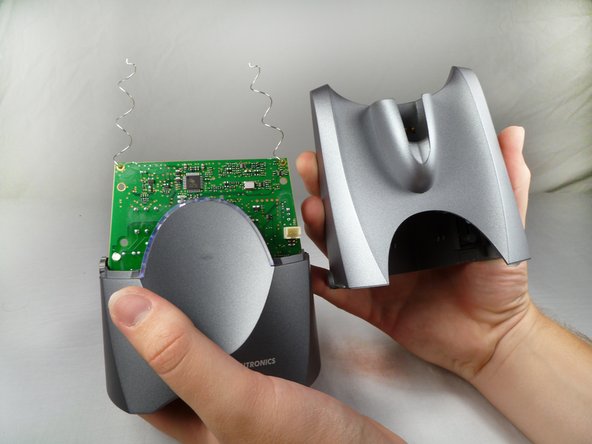

  4. Plantronics CS50 Headset Motherboard of the Base Unit Replacement: crwdns2935265:03crwdnd2935265:01crwdnd2935265:03crwdne2935265:0 Plantronics CS50 Headset Motherboard of the Base Unit Replacement: crwdns2935265:03crwdnd2935265:02crwdnd2935265:03crwdne2935265:0 Plantronics CS50 Headset Motherboard of the Base Unit Replacement: crwdns2935265:03crwdnd2935265:03crwdnd2935265:03crwdne2935265:0

    • Separate, but do not remove, the silver upper piece from the dark lower piece.

    • Carefully disconnect the wires from the motherboard.

    • Remove the silver top of the base.

    crwdns2913378:0crwdne2913378:0

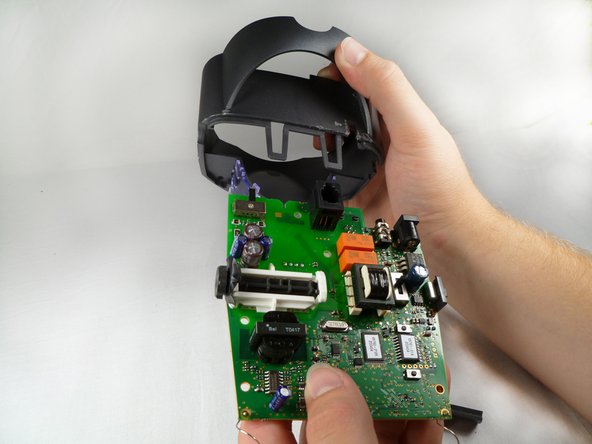

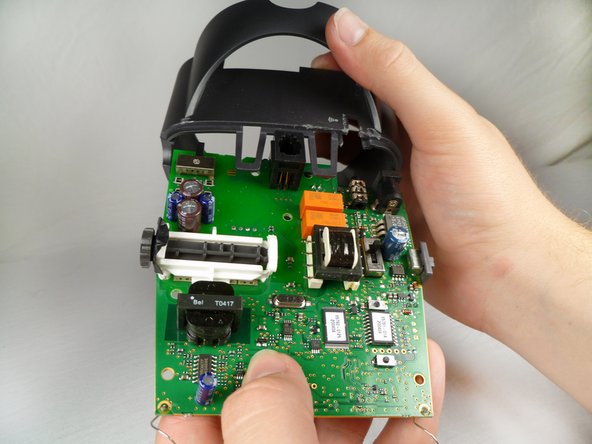

  5. Plantronics CS50 Headset Motherboard of the Base Unit Replacement: crwdns2935265:04crwdnd2935265:01crwdnd2935265:03crwdne2935265:0 Plantronics CS50 Headset Motherboard of the Base Unit Replacement: crwdns2935265:04crwdnd2935265:02crwdnd2935265:03crwdne2935265:0 Plantronics CS50 Headset Motherboard of the Base Unit Replacement: crwdns2935265:04crwdnd2935265:03crwdnd2935265:03crwdne2935265:0

    • Remove the motherboard from the base

    crwdns2913378:0crwdne2913378:0
crwdns2915888:0crwdne2915888:0

To reassemble your device, follow these instructions in reverse order.
