Logitech V220 - Cordless Optical Mouse Battery Replacement

crwdns2931653:01crwdne2931653:0 Removing the USB Wireless Receiver




• Wash your hands before replacing the battery to prevent debris getting into the mouse and damaging its internal components.
• Orient the mouse so you are viewing its base.
• Using your fingers, gently remove the USB wireless receiver by sliding it towards you.
• USB removal will result in the power switch to be in its ON position.
• Place the USB to the side for reassembly.
• With your fingertip, engage the power switch to its OFF position to ensure the mouse is not powered.
crwdns2913378:0crwdne2913378:0
crwdns2934285:0crwdne2934285:0
crwdns2934285:0crwdne2934285:0
crwdns2917038:0crwdne2917038:0
1024
crwdns2891542:0crwdne2891542:0 crwdns2934287:0crwdne2934287:0
crwdns2931653:02crwdne2931653:0 Removing the Battery Cover



• Hold the mouse so your palm is beneath, but not directly contacting, the top-side of the mouse.
• Still viewing the base of the mouse, locate the button with the battery status logo.
• Press the button firmly.
• The battery cover from the top-side should fall into your palm.
• Place the cover to the side for reassembly.
crwdns2913378:0crwdne2913378:0
crwdns2934285:0crwdne2934285:0
crwdns2934285:0crwdne2934285:0
crwdns2917038:0crwdne2917038:0
1024
crwdns2891542:0crwdne2891542:0 crwdns2934287:0crwdne2934287:0

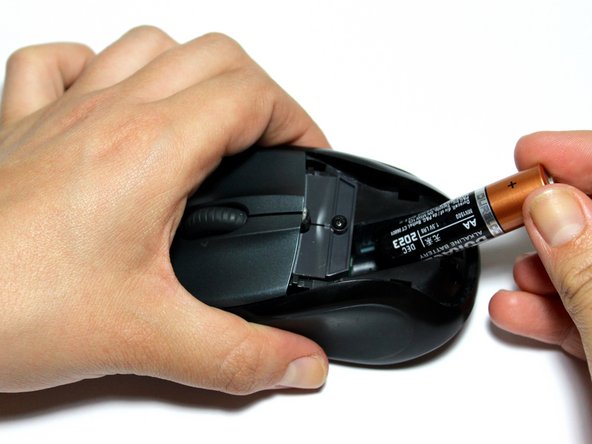

crwdns2931653:03crwdne2931653:0 Removing the Battery
• Place the mouse on a flat surface.
• Firmly grip the front of the mouse with the fingertips of one hand.
• Use a fingertip of your other hand to simultaneously push the positive (+) terminal of the battery in and up. Do so until the terminal is completely out of the mouse.
• Remove the battery by pulling it out of the mouse.
• Set the battery aside for proper disposal.
crwdns2913378:0crwdne2913378:0
crwdns2934285:0crwdne2934285:0
crwdns2934285:0crwdne2934285:0
crwdns2917038:0crwdne2917038:0
1024
crwdns2891542:0crwdne2891542:0 crwdns2934287:0crwdne2934287:0
crwdns2931653:04crwdne2931653:0 Installing a New Battery
• Firmly grip the front of the mouse with the fingertips of one hand.
• With your other hand, take a new, AA battery.
• Insert the battery into the slot by its negative (-) terminal end.
• Push the battery in and down with your fingertip on the edge of the positive (+) side until the battery is fully in the slot.
crwdns2913378:0crwdne2913378:0
crwdns2934285:0crwdne2934285:0
crwdns2934285:0crwdne2934285:0
crwdns2917038:0crwdne2917038:0
1024
crwdns2891542:0crwdne2891542:0 crwdns2934287:0crwdne2934287:0

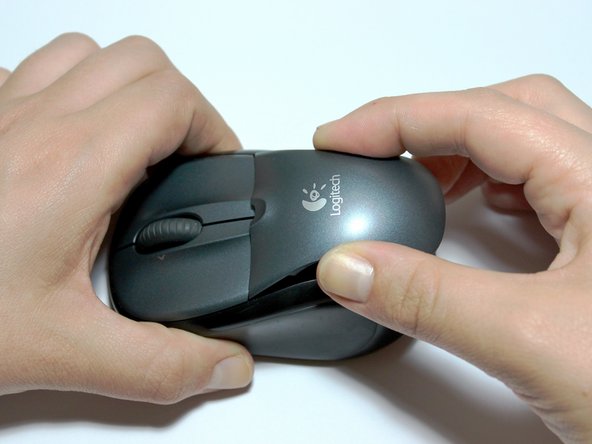

crwdns2931653:05crwdne2931653:0 Reassembling the Battery Cover
• Maintain your grip on the front of the mouse with your finger tips.
• Grab the battery cover by its edges with the fingertips of your free hand.
• Locate the following:
• Battery cover insertion prongs.
• Insertion prong holes.
• Insert the battery cover by placing the insertion prongs into the holes near the middle of the mouse at an angle.
• Once the prongs are aligned and fully inserted, lower and press the back end of the battery cover until it a snapping sound is heard. The cover should be secured in place.
crwdns2913378:0crwdne2913378:0
crwdns2934285:0crwdne2934285:0
crwdns2934285:0crwdne2934285:0
crwdns2917038:0crwdne2917038:0
1024
crwdns2891542:0crwdne2891542:0 crwdns2934287:0crwdne2934287:0
crwdns2931653:06crwdne2931653:0
• Turn the mouse over to view its base.
• Take the USB wireless receiver.
• With the Logitech logo facing you, align the USB with the slider slot.
• Gently slide the USB away from you until you cannot slide it any further. The USB should be secure in its slot.
crwdns2913378:0crwdne2913378:0
crwdns2934285:0crwdne2934285:0
crwdns2934285:0crwdne2934285:0
crwdns2917038:0crwdne2917038:0
1024
crwdns2891542:0crwdne2891542:0 crwdns2934287:0crwdne2934287:0
