crwdns2935311:0crwdnd2935311:0crwdne2935311:0 crwdns2935313:0ASRock B850 LiveMixer Space WiFicrwdnd2935313:0crwdnd2935313:0crwdne2935313:0

  1. ASRock B850 Labels, Top-Down: crwdns2935265:01crwdnd2935265:01crwdnd2935265:01crwdne2935265:0

    • Top of mobo

    • Bottom of mobo

    crwdns2913378:0crwdne2913378:0

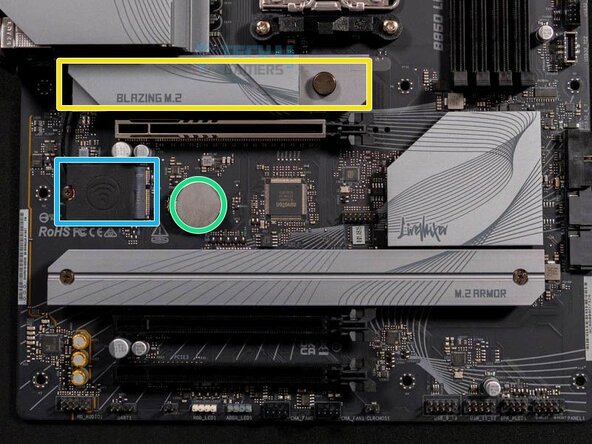

  2. ASRock B850 Labels: crwdns2935265:02crwdnd2935265:01crwdnd2935265:02crwdne2935265:0 ASRock B850 Labels: crwdns2935265:02crwdnd2935265:02crwdnd2935265:02crwdne2935265:0

    • CPU fan connectors

    • CPU goes here

    • SSD cover

    • CMOS battery

    • Wifi chip

    • Ram slots

    crwdns2913378:0crwdne2913378:0

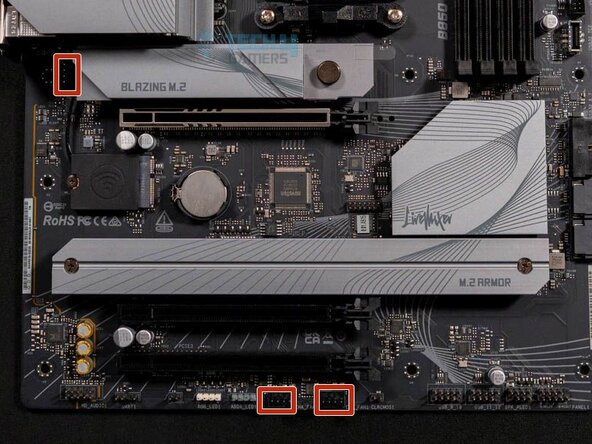

  4. ASRock B850 Labels: crwdns2935265:03crwdnd2935265:01crwdnd2935265:02crwdne2935265:0 ASRock B850 Labels: crwdns2935265:03crwdnd2935265:02crwdnd2935265:02crwdne2935265:0

    • Chassis fan connectors

    • Heatsink goes here (After CPU is installed)

    • ATX12V1 port

    • ATX12V2 port

    crwdns2913378:0crwdne2913378:0

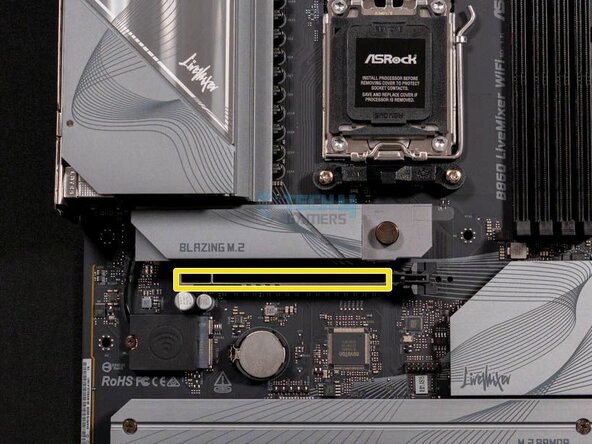

  5. ASRock B850 Labels: crwdns2935265:04crwdnd2935265:01crwdnd2935265:02crwdne2935265:0 ASRock B850 Labels: crwdns2935265:04crwdnd2935265:02crwdnd2935265:02crwdne2935265:0

    • AIO Pump

    • ADDR LED

    • Graphics card goes here

    crwdns2913378:0crwdne2913378:0

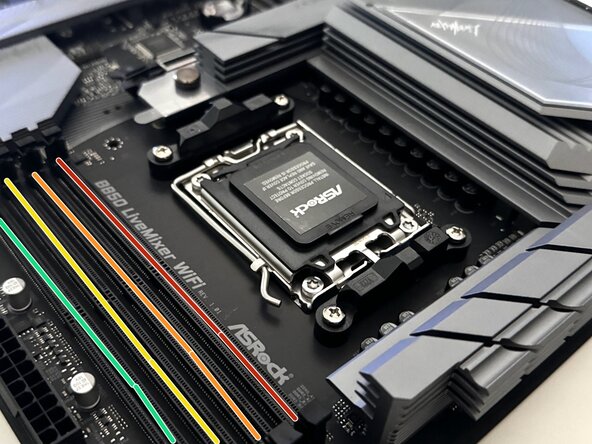

  6. ASRock B850 Labels, RAM Channels: crwdns2935265:05crwdnd2935265:01crwdnd2935265:02crwdne2935265:0 ASRock B850 Labels, RAM Channels: crwdns2935265:05crwdnd2935265:02crwdnd2935265:02crwdne2935265:0

    • Channel A1

    • Channel A2

    • Channel B1

    • Channel B2

    • If you only have 2 sticks of RAM, you should use channels A2 and B2 to avoid any errors

    crwdns2913378:0crwdne2913378:0

  7. ASRock B850 Labels, Ports - Left: crwdns2935265:06crwdnd2935265:01crwdnd2935265:01crwdne2935265:0

    • Display port

    • HDMI port

    • USB-C port

    • Ethernet port

    • USB 2.0 and 3.0 ports

    • Antenna plugs in here

    crwdns2913378:0crwdne2913378:0
